Product Overview

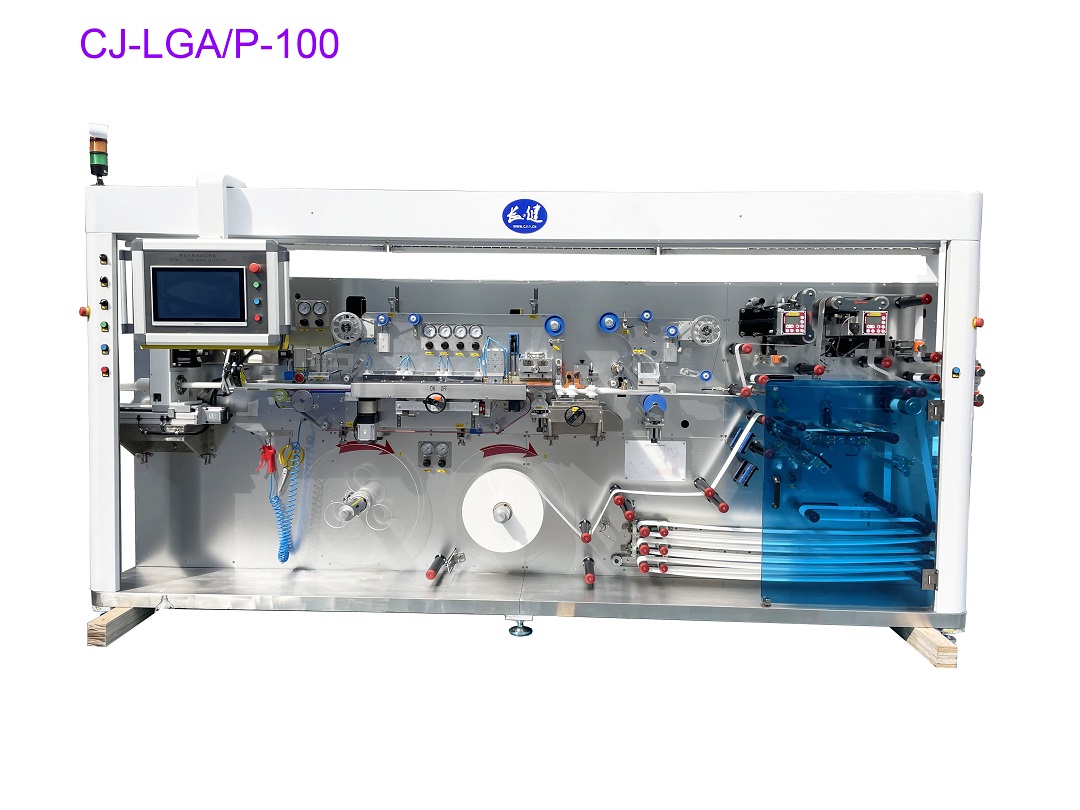

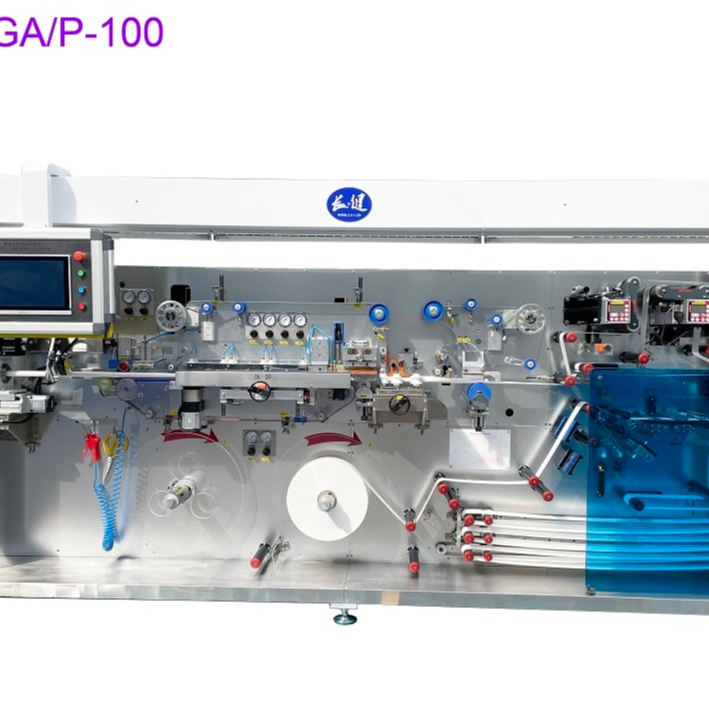

Automatic tubing machine CJ-LGA/P-100
✓
Designed for welding ABL and PBL web thickness range 180µm-400µm and cutting into tube body.
✓

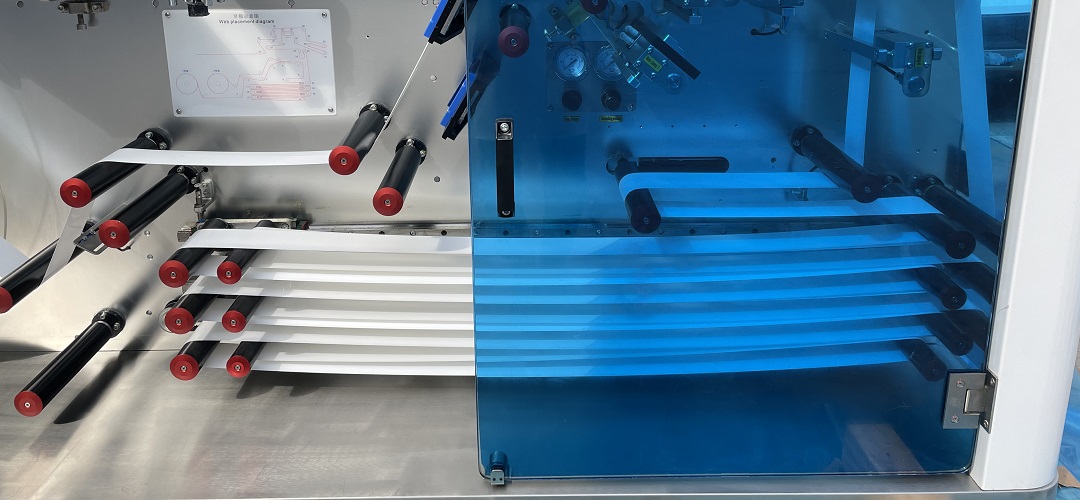

Equipped with two unwind stations with advanced tension control to achieve maximum roll Dia60 to minimum roll Dia12.7.
✓
High-precision German-made BST web controllers delivering less than 0.1mm variations in the overlap.
Our machine is designed with web saver technology like side trimming and without side trim technology. We feature state-of-the-art online web joints detection technology using a Japanese-made color laser sensor to detect unwanted particles and maintain proper inspections which assist in automatic rejection.

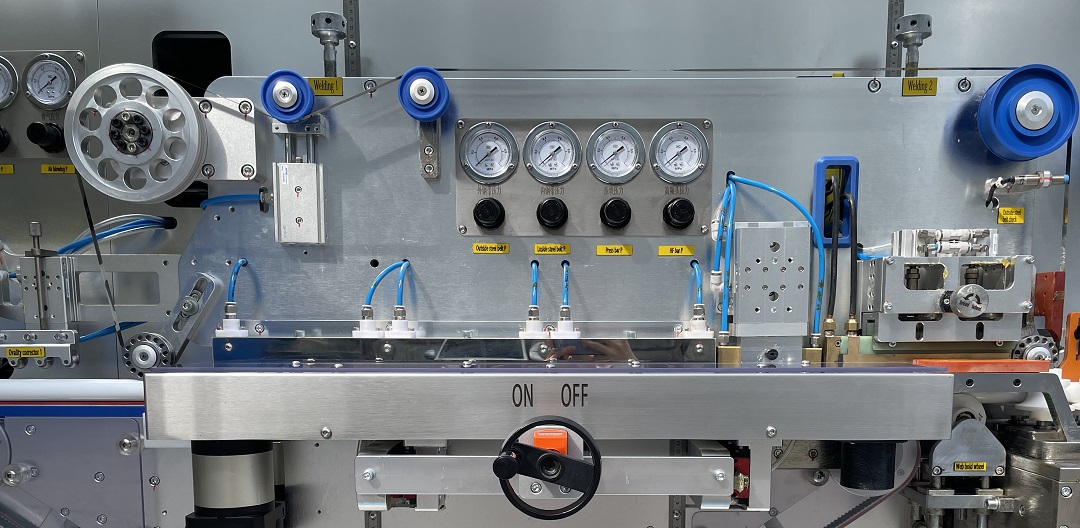

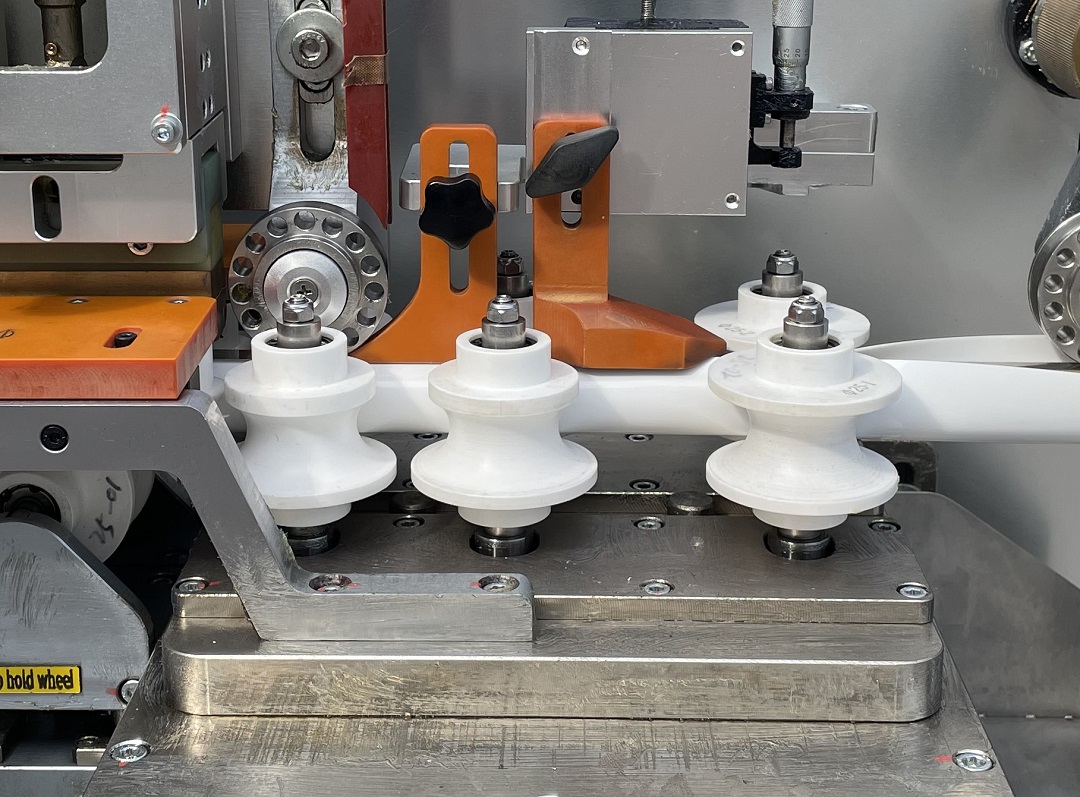

We have designed a special body welding mandrel which maintains correct overlaps as per set value. Mandrel cooling water temperatures are controlled by an inbuilt MTC with a high-pressure water pump to maintain linear water flow and proper cooling. Top and bottom High-frequency induction generators with digital control and servo control metal belts achieve higher compression and perfect welding for ABL/PBL.
Our machine is equipped with servo cutting devices for sleeves, using a German-made color sensor to detect eye marks. The machine is fully equipped with auto rejection technology for any stop, start rejection, and web joints rejection. Printing defect detection camera technology system is optional as per customer requirements.
Company Profile

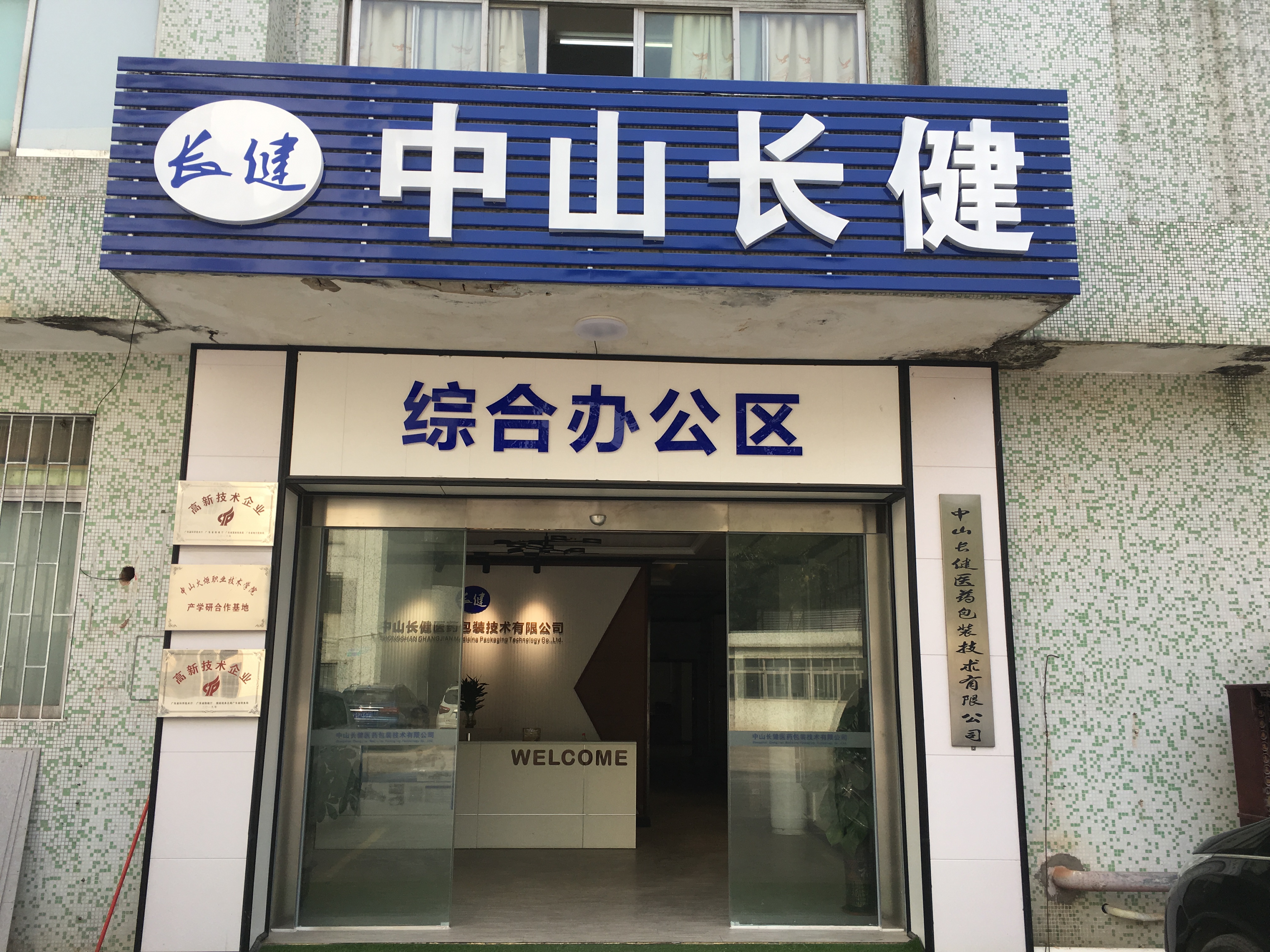

Our company was established in 2005. Guided by technological innovation, the company is well equipped with a professional production team working on laminated tube manufacturing & packaging machinery. Our equipment is suitable for pharmaceutical, cosmetics, hand & face washing products, toothpaste, medicine, viscose, shoe polish, food, and other industries.

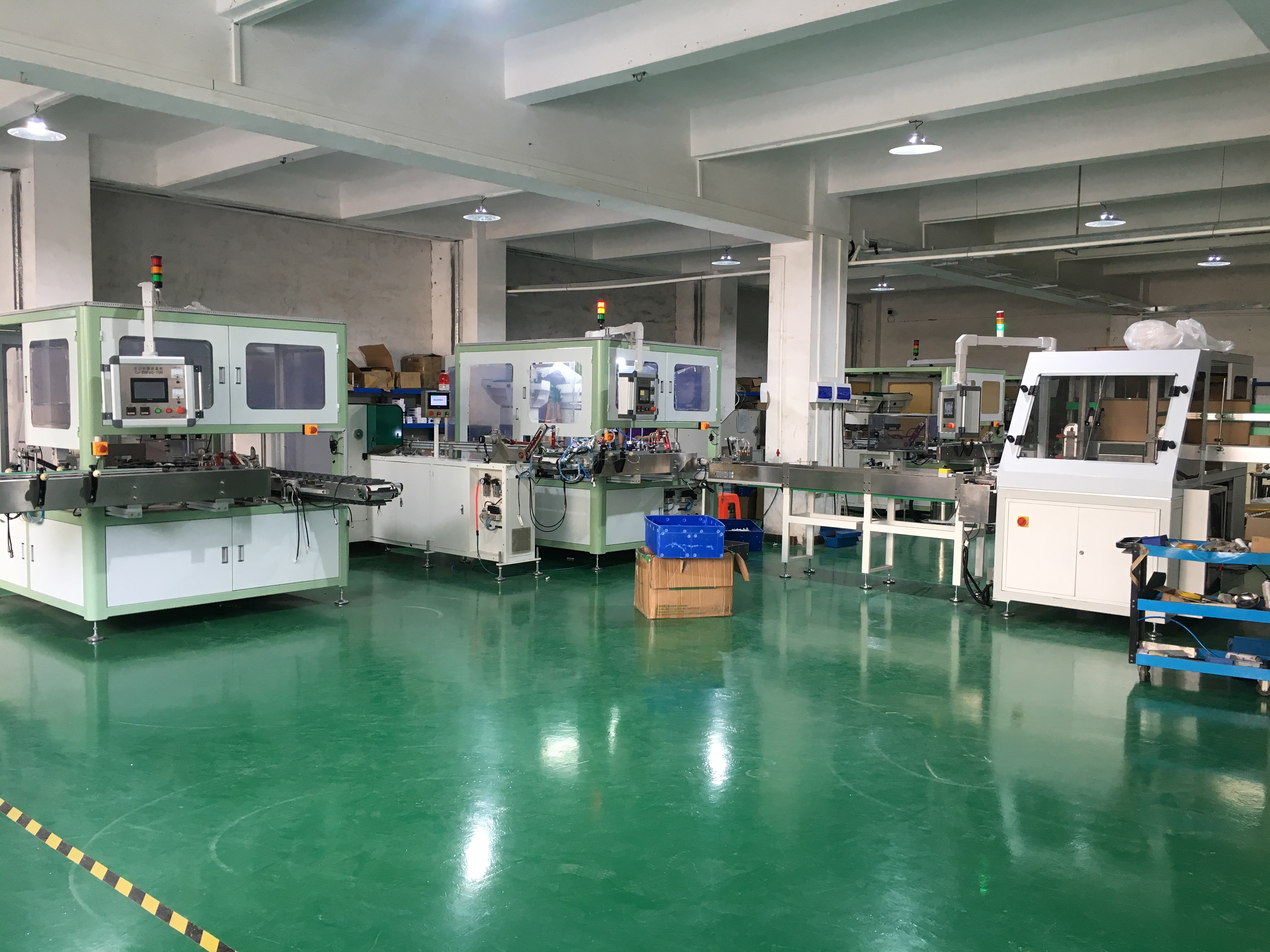

We have exported our equipment to Europe, Asia, South America, etc. Our research and development have helped us to design high-profile and optimum performing machinery in the following sectors: Automatic tubing machine, automatic tube shoulder welding machine, automatic tube heading machine, automatic capping and top-seal machine, automatic tube packing machine, automatic tube loading machine, automatic production line, etc.
We are an innovative machine-building plant with highly educated engineers and an R&D team capable of providing personalized solutions related to the packaging industry. We support well-known toothpaste manufacturing enterprises and pharmaceutical companies, maintaining excellent cooperation with them since 2016.
The company was recognized as a "high-tech enterprise" in 2016. In the same year, it was identified as a municipal "machine tool" production enterprise. In 2018, it was once again recognized as a "high-tech enterprise". We have developed eight identified high-tech products, which have applied for many national invention patents and utility model patents.
The company adheres to the concept of technology innovation, proper faith management, and quality service, and has cultivated an excellent design, production, sales, and after-sales service team alongside online services.
Frequently Asked Questions
1. How long does the warranty run?
We guarantee the high quality of the machine transferred within a guarantee period of 12 (twelve) months.
2. How to pay for the products?
Usually we work on FOB terms, with payment via T/T.
3. Will you provide installation service?
We will provide installation services, and the Buyer will need to bear the related travel and accommodation costs.
4. Will the accessories change frequently?
The service life of the accessories is closely related to daily maintenance. When ordering, we will provide free wearing parts along with daily maintenance strategies.
5. Do you accept customization?
Yes, we can make modifications and customizations on our machines according to your specific needs. Please contact us to share your requirements.
6. What tube sizes and materials can this machine process?

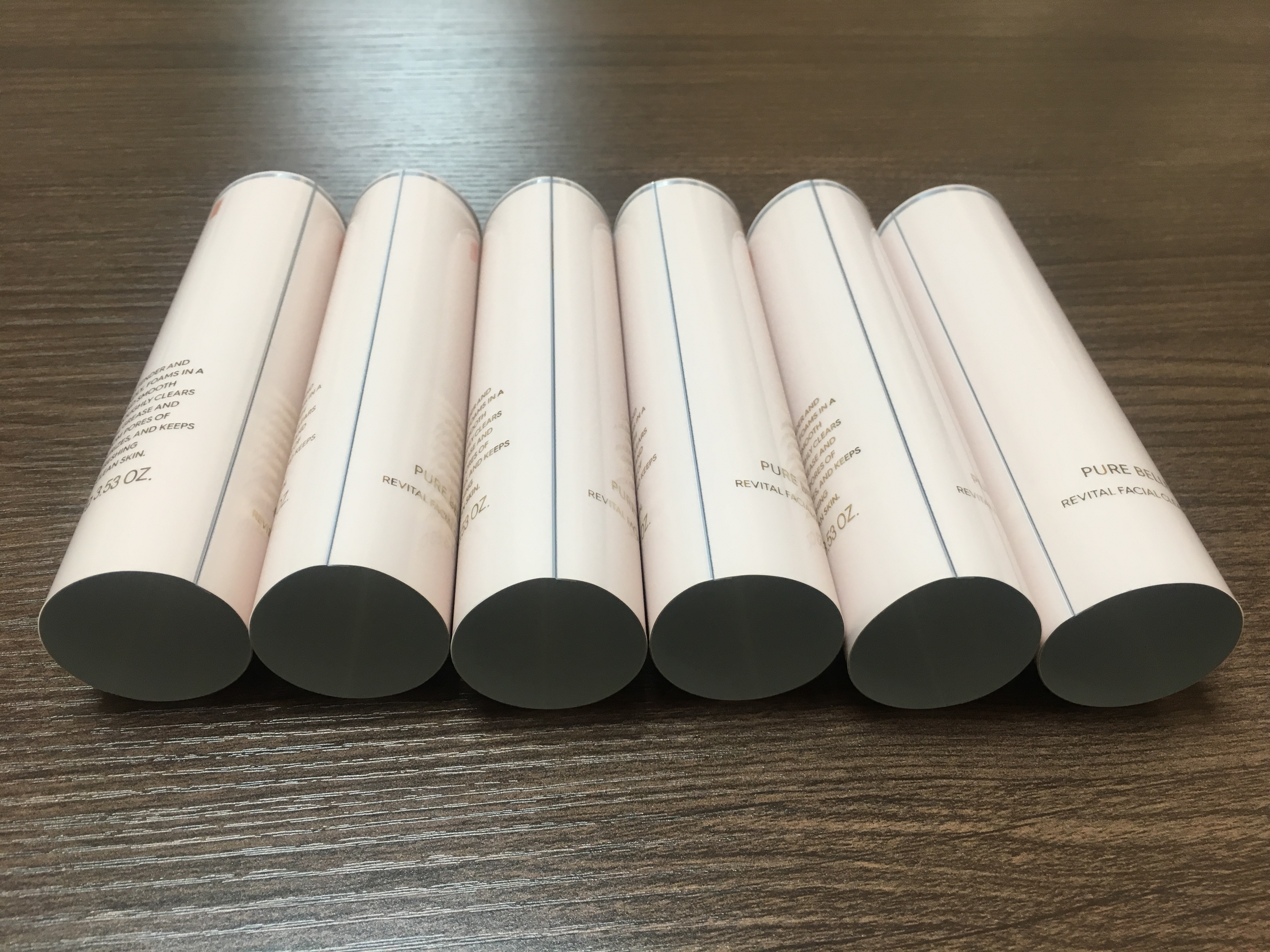

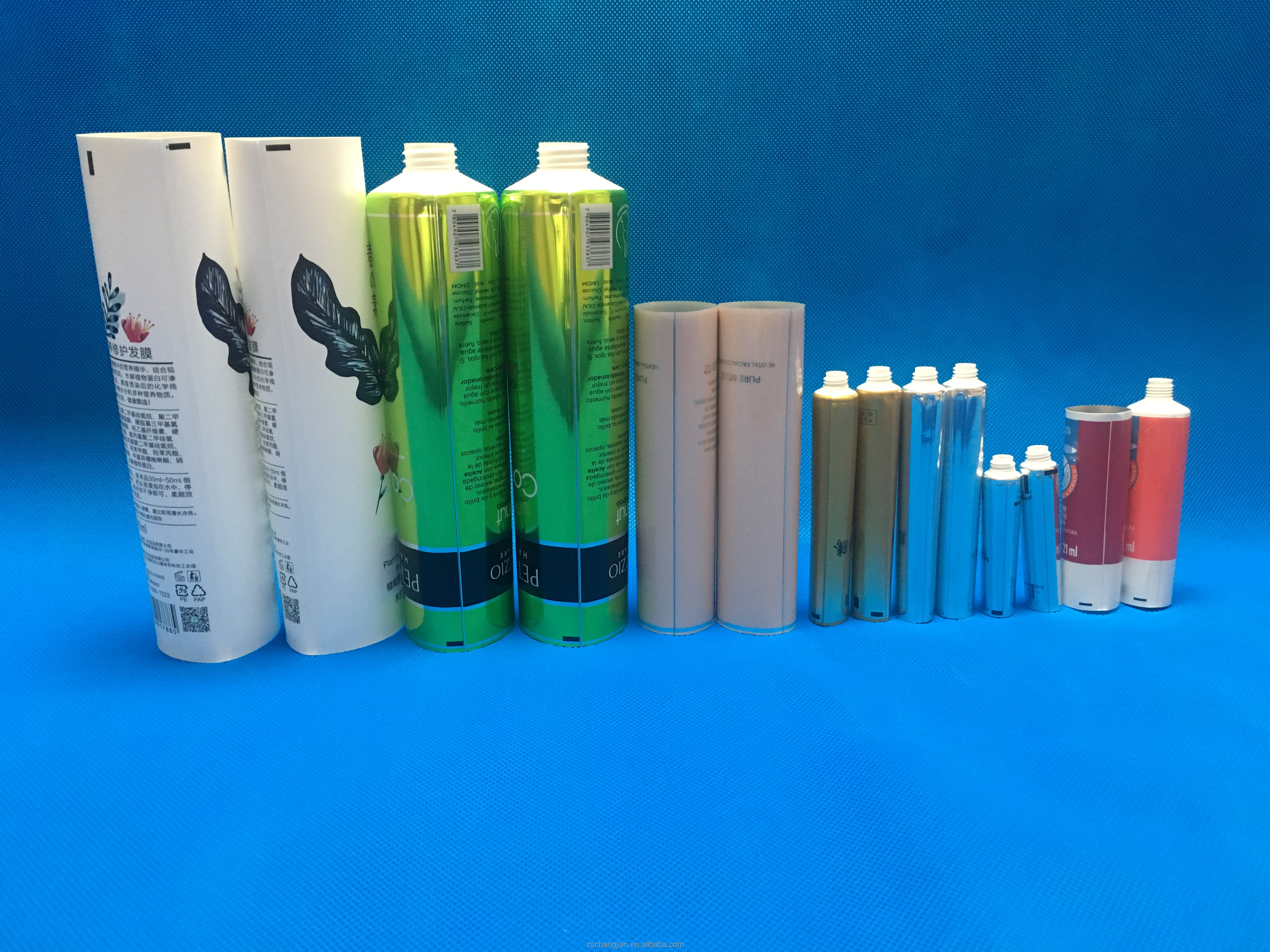

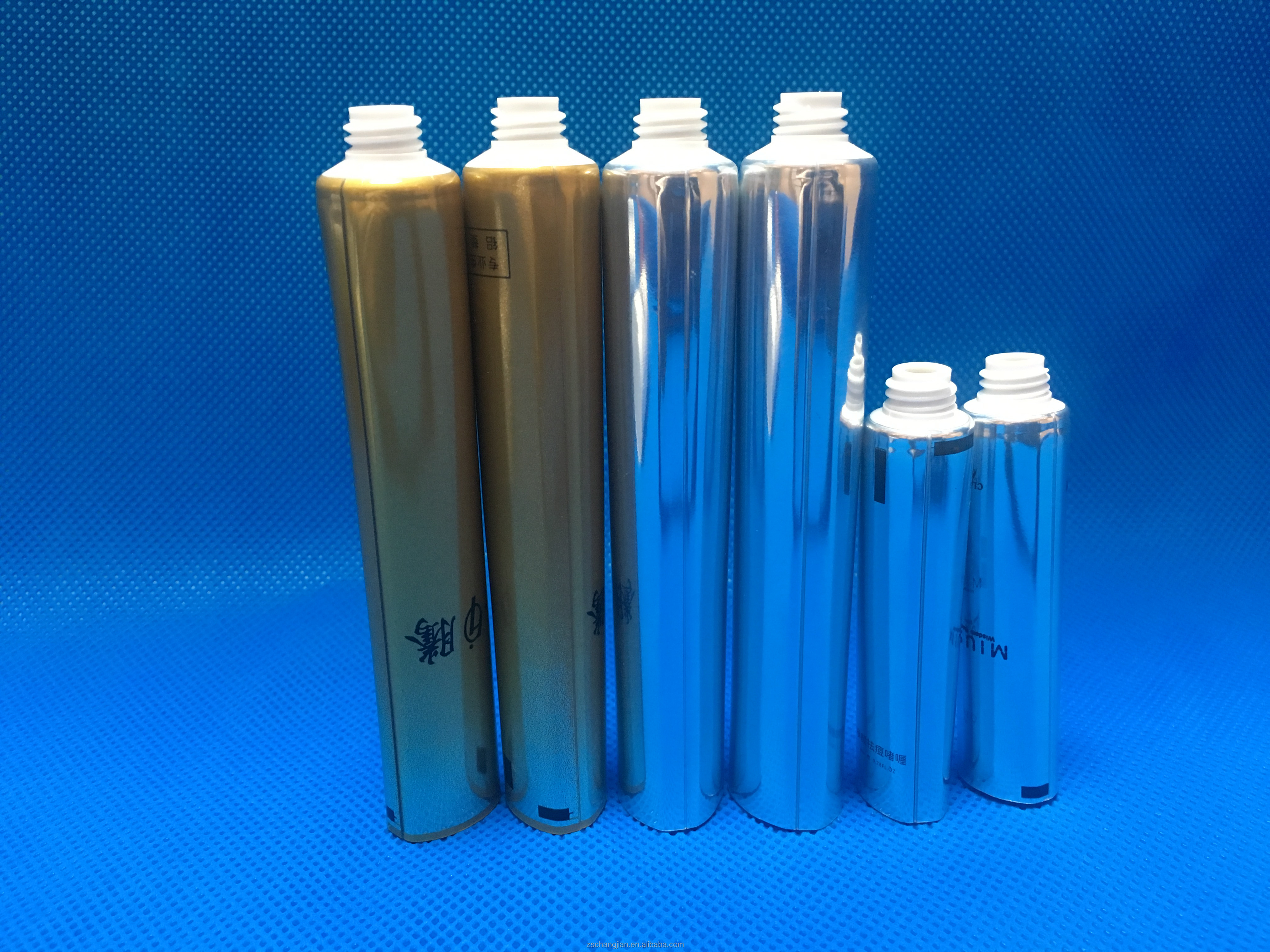

This automatic tubing machine is designed for welding ABL and PBL materials with a web thickness range of 170-400 microns and produces tube diameters ranging from 12.7mm to 60mm.
